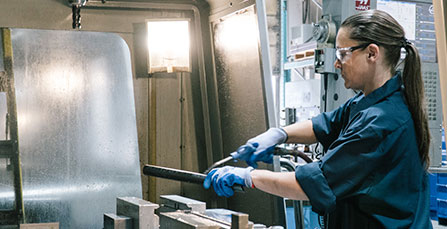

Wesgar's Fabrication Tolerances banner image: employee in safety vest spraying a sheet metal fabricating machine

Fabrication Tolerances

Wesgar fabrication tolerances, unless otherwise specified, are applied as follows. Tighter tolerances may be achieved as design and materials allow.

 Measurement
Hole to Hole± 0.005 inches
Edge to Hole± 0.008 inches
Fold to Hole± 0.010 inches
Edge to Edge± 0.008 inches
Fold to Edge± 0.010 inches
Fold to Fold± 0.015 inches
Hole Size± 0.003 inches
Angularity± 1 degree
